Displaying a Basler Camera Snapshot in a WPF App (pylon SDK / C# / .NET 8)

“You have working code, but you want to preview images in a GUI as quickly as possible.” As a first step, this article builds a minimal WPF viewer with three buttons: Connect / Disconnect / Snap. With a single click, the app captures one frame and displays it in a WPF Image control.

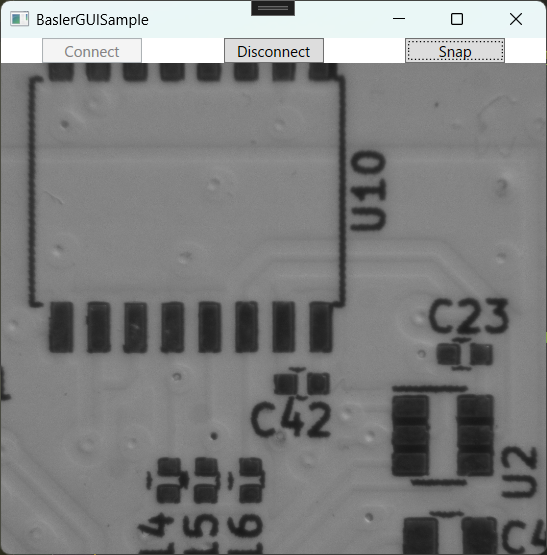

Example run

Goal

Operate the camera using three buttons: Connect / Disconnect / Snap
Display the snapped frame in an Image
Ensure the camera is properly disconnected and disposed on exit (avoid resource leaks)

Project Structure

We reuse the existing BaslerCameraSample (class library) created in earlier articles (e.g., software-trigger capture) and add a new WPF application project BaslerGUISample, referencing that library.

View (XAML)

Place three buttons and an Image preview.

Window x:Class=”BaslerGUISample.MainWindow”
        xmlns=”http://schemas.microsoft.com/winfx/2006/xaml/presentation”
        xmlns:x=”http://schemas.microsoft.com/winfx/2006/xaml”
        xmlns:d=”http://schemas.microsoft.com/expression/blend/2008″
        xmlns:mc=”http://schemas.openxmlformats.org/markup-compatibility/2006″
        xmlns:local=”clr-namespace:BaslerGUISample”
        mc:Ignorable=”d”
        Title=”BaslerGUISample” Height=”450″ Width=”450″ Closing=”Window_Closing”>
  <Grid>
    <Grid.RowDefinitions>
      <RowDefinition Height=”Auto”/>
      <RowDefinition Height=”*”/>
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
      <ColumnDefinition Width=”*”/>
      <ColumnDefinition Width=”*”/>
      <ColumnDefinition Width=”*”/>
    </Grid.ColumnDefinitions>

    <Grid Grid.Row=”0″ Grid.Column=”0″>
      <Button Content=”Connect” Width=”80″ Margin=”4,0″ Command=”{Binding ConnectCommand}”/>
    </Grid>
    <Grid Grid.Row=”0″ Grid.Column=”1″>
      <Button Content=”Disconnect” Width=”80″ Margin=”4,0″ Command=”{Binding DisconnectCommand}”/>
    </Grid>
    <Grid Grid.Row=”0″ Grid.Column=”2″>
      <Button Content=”Snap” Width=”80″ Margin=”4,0″ Command=”{Binding SnapCommand}”/>
    </Grid>

    <Grid Grid.Row=”1″ Grid.Column=”0″ Grid.ColumnSpan=”3″>
      <Image x:Name=”PreviewImage” Source=”{Binding CurrentFrame}” Stretch=”UniformToFill”/>
    </Grid>
  </Grid>
</Window>

Window x:Class=“BaslerGUISample.MainWindow”

xmlns=“http://schemas.microsoft.com/winfx/2006/xaml/presentation”

xmlns:x=“http://schemas.microsoft.com/winfx/2006/xaml”

xmlns:d=“http://schemas.microsoft.com/expression/blend/2008”

xmlns:mc=“http://schemas.openxmlformats.org/markup-compatibility/2006”

xmlns:local=“clr-namespace:BaslerGUISample”

mc:Ignorable=“d”

Title=“BaslerGUISample” Height=“450” Width=“450” Closing=“Window_Closing”>

<Grid>

<Grid.RowDefinitions>

</Grid.RowDefinitions>

<Grid.ColumnDefinitions>

</Grid.ColumnDefinitions>

</Grid>

</Grid>

</Grid>

</Grid>

</Window>

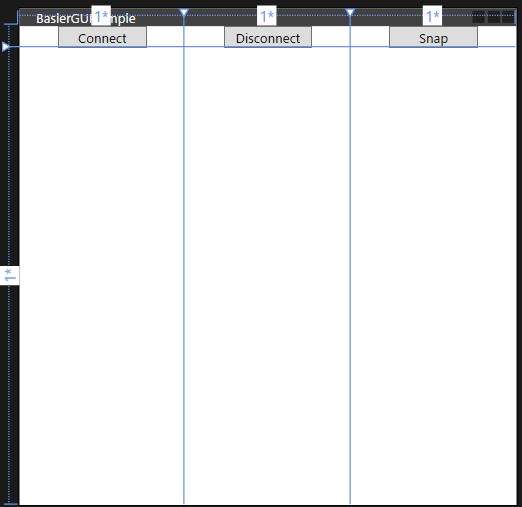

Designer view example:

XAML layout

In code-behind, set DataContext = new MainViewModel(); and make sure the camera disconnects in Window_Closing (shown later).

ViewModel

Any MVVM base is fine (BindableBase / DelegateCommand are user-defined in this article; implementation omitted)
Use the existing BaslerCameraSample for connect/snap/disconnect
Bind CurrentFrame (BitmapSource) to Image.Source
If the UI freezes while connecting, consider making Connect asynchronous later

using BaslerSamples;
// The author implements BindableBase and DelegateCommand under a Common namespace.
// Please adapt to your own environment.
// using Common;
using System;
using System.ComponentModel;
using System.Windows;
using System.Windows.Media.Imaging;

namespace BaslerGUISample.ViewModels
{
    public partial class MainViewModel : BindableBase
    {
        private readonly BaslerCameraSample _cameraService = new();

        public MainViewModel()
        {
            ConnectCommand    = new DelegateCommand(Connect,    () => !IsConnected);
            DisconnectCommand = new DelegateCommand(Disconnect, () =>  IsConnected);
            SnapCommand       = new DelegateCommand(Snap,       () =>  IsConnected);

            Connect(); // Call this if you want to auto-connect at startup
        }

        private bool _isConnected;
        public bool IsConnected
        {
            get => _isConnected;
            set
            {
                SetProperty(ref _isConnected, value);
            }
        }

        private BitmapSource? _currentFrame;
        public BitmapSource? CurrentFrame
        {
            get => _currentFrame;
            set => SetProperty(ref _currentFrame, value);
        }

        public DelegateCommand ConnectCommand    { get; }
        public DelegateCommand DisconnectCommand { get; }
        public DelegateCommand SnapCommand       { get; }

        public void Connect()
        {
            IsConnected = _cameraService.Connect();
        }

        /// <summary>
        /// Disconnects the camera.
        /// </summary>
        public void Disconnect()
        {
            _cameraService.Disconnect();
            IsConnected = _cameraService.IsConnected;
        }

        public void Snap()
        {
            try
            {
                CurrentFrame = _cameraService.SnapToBitmapSource();
            }
            catch (InvalidOperationException ex)
            {
                // Show a message box when the camera is not connected.
                MessageBox.Show($”Failed to snap. Error: {ex.Message}”);
            }
        }
    }
}

using BaslerSamples;

// The author implements BindableBase and DelegateCommand under a Common namespace.

// Please adapt to your own environment.

// using Common;

using System;

using System.ComponentModel;

using System.Windows;

using System.Windows.Media.Imaging;

namespace BaslerGUISample.ViewModels

{

public partial class MainViewModel : BindableBase

{

private readonly BaslerCameraSample _cameraService = new();

public MainViewModel()

{

ConnectCommand = new DelegateCommand(Connect, () => !IsConnected);

DisconnectCommand = new DelegateCommand(Disconnect, () => IsConnected);

SnapCommand = new DelegateCommand(Snap, () => IsConnected);

Connect(); // Call this if you want to auto-connect at startup

}

private bool _isConnected;

public bool IsConnected

{

get => _isConnected;

set

{

SetProperty(ref _isConnected, value);

}

private BitmapSource? _currentFrame;

public BitmapSource? CurrentFrame

{

get => _currentFrame;

set => SetProperty(ref _currentFrame, value);

}

public DelegateCommand ConnectCommand { get; }

public DelegateCommand DisconnectCommand { get; }

public DelegateCommand SnapCommand { get; }

public void Connect()

{

IsConnected = _cameraService.Connect();

}

/// <summary>

/// Disconnects the camera.

/// </summary>

public void Disconnect()

{

_cameraService.Disconnect();

IsConnected = _cameraService.IsConnected;

}

public void Snap()

{

try

{

CurrentFrame = _cameraService.SnapToBitmapSource();

}

catch (InvalidOperationException ex)

{

// Show a message box when the camera is not connected.

MessageBox.Show($“Failed to snap. Error: {ex.Message}”);

}

(Reference) MainWindow Code-Behind

public partial class MainWindow : Window
{
    private readonly MainViewModel _viewModel;

    public MainWindow()
    {
        InitializeComponent();
        _viewModel = new MainViewModel();
        DataContext = _viewModel;
    }

    /// <summary>
    /// Disconnect the camera before the window closes.
    /// </summary>
    private void Window_Closing(object sender, System.ComponentModel.CancelEventArgs e)
    {
        _viewModel.Disconnect();
    }
}

public partial class MainWindow : Window

{

private readonly MainViewModel _viewModel;

public MainWindow()

{

InitializeComponent();

_viewModel = new MainViewModel();

DataContext = _viewModel;

}

/// <summary>

/// Disconnect the camera before the window closes.

/// </summary>

private void Window_Closing(object sender, System.ComponentModel.CancelEventArgs e)

{

_viewModel.Disconnect();

}

Add `Disconnect()` to `BaslerCameraSample`

Since the earlier articles focused mainly on connecting and grabbing, we now add a proper Disconnect() to ensure resources are released when the app exits.

public void Disconnect()
{
    if (Camera != null)
    {
        if (IsGrabbing) StopGrabbing();
        if (Camera.IsOpen) Camera.Close();

        Camera.Dispose();
        Camera = null;
        Console.WriteLine(“Camera disconnected.”);
    }
}

public void Disconnect()

{

if (Camera != null)

{

if (IsGrabbing) StopGrabbing();

if (Camera.IsOpen) Camera.Close();

Camera.Dispose();

Camera = null;

Console.WriteLine(“Camera disconnected.”);

}

Implementation Tips / Common Pitfalls

UI thread updates When you move on to event-driven continuous acquisition, ImageGrabbed is raised from a non-UI thread. In that case, update CurrentFrame via Application.Current.Dispatcher.Invoke(...) (planned for a future article).
Stretch behavior UniformToFill: fills without margins (may crop) Uniform: shows the entire image (may add margins)
Error handling If connect/snap fails, show user-friendly feedback (e.g., MessageBox) instead of silently failing.

Summary

Implemented a minimal WPF viewer (Connect / Disconnect / Snap / preview)
Used MVVM to separate View and camera-control logic; bound BitmapSource to Image.Source
Added Disconnect() to reliably release camera resources on exit
This becomes a foundation for event-driven continuous preview in the next steps

Next Article Preview

Next, we’ll explain how to continuously acquire images using event-driven grabbing while updating the UI asynchronously. We’ll also connect it with queue-based saving and OpenCV display, aiming for a practical viewer.

About the Author

@MilleVision Sharing practical knowledge on industrial cameras and machine vision development, with a Basler pylon SDK × C# series.

Full Sample Code Package

A complete C# project (including unit tests) is available on BOOTH. It includes the omitted BindableBase and DelegateCommand implementations.

Exposure / gain / frame rate / ROI
Event-driven acquisition
Burst capture
Saving and logging
Updates planned alongside new articles
